Product Description:
Functions

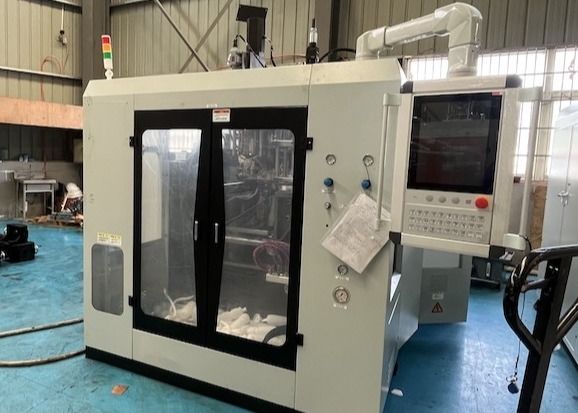

The MP plastic blow molding machine is designed for processing various plastic hollow products with high molecular weight. It is capable of producing hollow products ranging from 5 milliliters to 100 liters. These products encompass a wide range of items, including bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts. The machine has the versatility to blow different materials such as PE, PP, PVC, PA, PC, PS, and EVA while ensuring a flawless manufacturing process.
Features:
1.1.2 Features
a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.
b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
c) Mould clamping device adopts vertical compression, three pilot post, big beam arm and linear guider, cylinder spindle and double working position. Mould moves fast and stably.
d) Improved design of hydraulic oil loop. Power saving, rapid and stable.
e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.
g) Three operation modes-“Manual”, “Semi Auto”, “Full Auto”, are allowed to select.
h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.
i) This machine has two blowing functions of straight cutting and oblique cutting.
Technical Parameters:
System Item Unit Basic Parameter
Basic specifications
- Applicable materials: PE, PP, PVC, PA…
- Max product volume: 2 L
- Number of heads: 1, 2, 3, 4, 5, 6
- Machine dimension (LxWxH): 2.87X2.14X2.28
- Machine weight: 3.5 TON
Mould clamping system
- Mould clamping force: 30 KN
- Platen opening strokes: 120-350 MM
- Plate stroke: 380 MM
- Max mould sizes (WxH): 360X300 MM
Extrusion system
- Screw diameter: 55 MM
- Screw slenderness ratio (L/D): 24
- Plasticizing ability (HDPE): 45 KG/H
- Screw heating stage/zone: 3 Zone
- Screw heating power: 10.1 KW
- Screw fan power: 0.14 KW
- Extrusion motor power: 11 KW
Head
- Head heating stage/zone: 5 Zone
- Head heating power: 6.5 KW
Energy consumption
- Total machine power: 40 KW
- Oil motor power: 7.5 KW
- Air pressure: 0.6-0.8 MPA
- Compression air volume: 0.8-1 M3/H
- Cooling water volume: 30 L/H
Applications:
When considering the Product Application Occasions and Scenarios for the MEPER 5D 55d Extrusion Molding Machine, it is important to highlight its versatile capabilities and features. This automatic extrusion blow molding machine from China is a top-of-the-line Plastic Extrusion Molding Machine that is ideal for a wide range of applications.
The MEPER 5D 55d is suitable for use in various industries such as packaging, automotive, construction, and more. Its ability to handle materials like PE, PP, PVC, and PA make it a great choice for producing a variety of products. Whether you need to create bottles, containers, pipes, or other plastic products, this Molding Extruder Equipment is up to the task.
With a plate stroke of 380mm and a screw diameter of 55mm, the MEPER 5D 55d offers precision and reliability in the extrusion molding process. The machine's flexibility is further enhanced by the option to choose from 1, 2, 3, 4, 5, or 6 heads, allowing for customization based on specific production needs.
Businesses looking to invest in this advanced extrusion molding machine will benefit from its CE/ISO9001:2008 certification, ensuring quality and compliance with industry standards. The minimum order quantity of 1 set, negotiable price, and standard packaging details make it accessible to a wide range of customers.
Furthermore, with a delivery time of 25-35 work days, flexible payment terms including L/C and T/T, and a supply ability of 100 sets per month, the MEPER 5D 55d offers convenience and efficiency in the procurement process.
Customization:
Product Customization Services for the Plastic Extrusion Molding Machine
Brand Name: MEPER
Model Number: 5D 55d
Place of Origin: China
Certification: CE/ISO9001:2008
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard packaging
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Machine weight: 3.5ton
Applicable materials: PE, PP, PVC, PA
Max product volume: 2L
Screw slenderness ratio: 24
Mould clamping force: 30KN
